Bianchi S4
A 1920s Bianchi S4 tourer, put back together in a conservation restoration: the torn hood was repaired with pieces of an old hood, so that nothing of its originality was lost.
- Model
- Bianchi S4 tourer
- Era
- 1920s
- Engine
- 4 cylinders
- Body
- Black tourer, hood with side screens and windows
- Work
- Reassembly, engine, underside, hood repaired with original pieces
- Restoration
- Conservation
The story

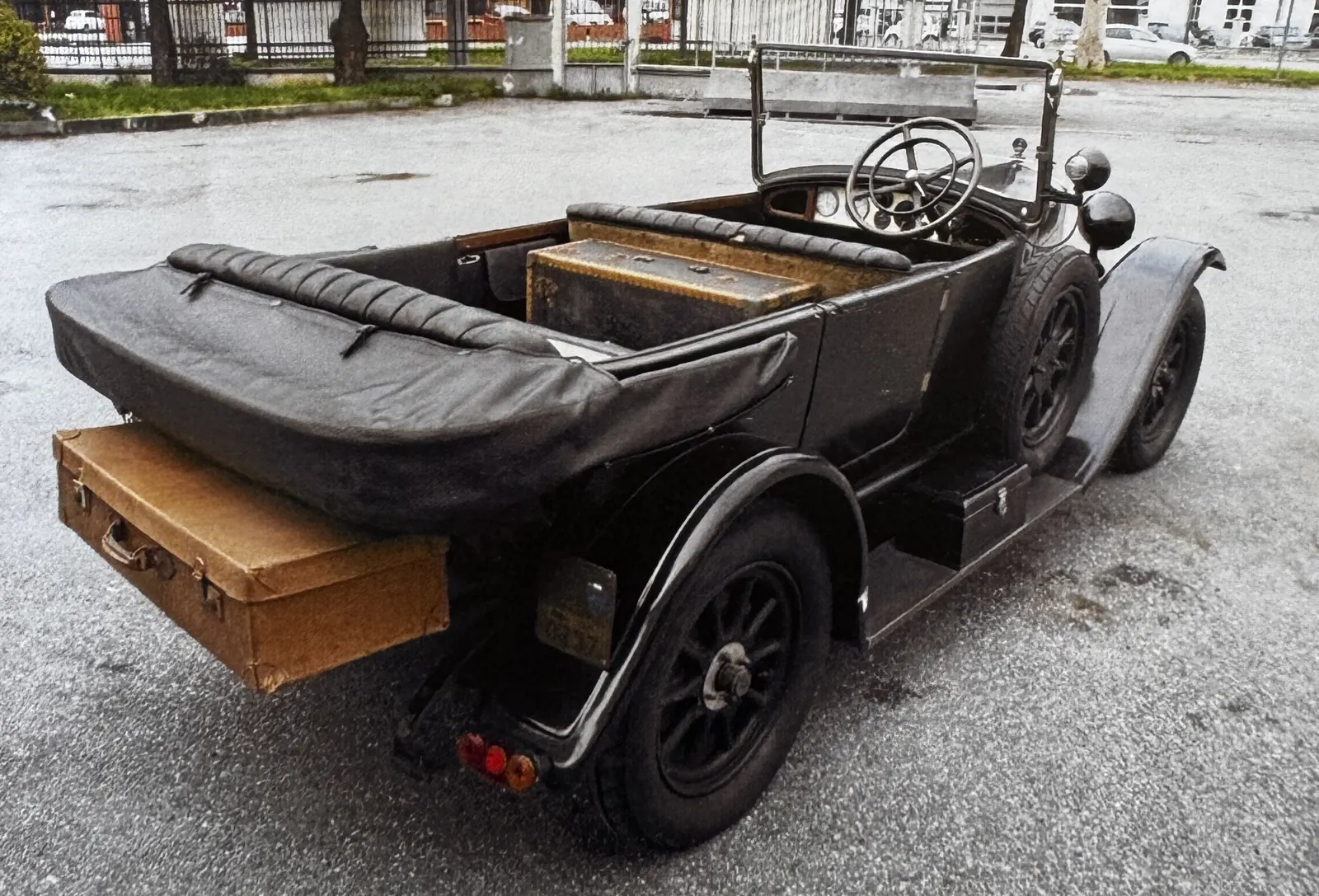

As well as its famous bicycles, Bianchi of Milan built cars: the S4 is a 1920s car, seen here as an open tourer with a hood and side screens with windows. A touring car, with a luggage rack and cases at the back.
The restoration was a conservation job: the car was put back together, keeping everything that was original. The best example is the hood: it was torn, but instead of making a new one it was repaired with a piece of an old hood, joining the pieces together. A new hood would have stood out at once from the rest of the car; this way everything is the same age and has the same look.
The restoration step by step
Put back together, keeping the original
- Step 1 of 5
The torn hood
The original hood was ripped in several places, with the backing cloth showing through the tears. Underneath, the iron hoops were still in place.

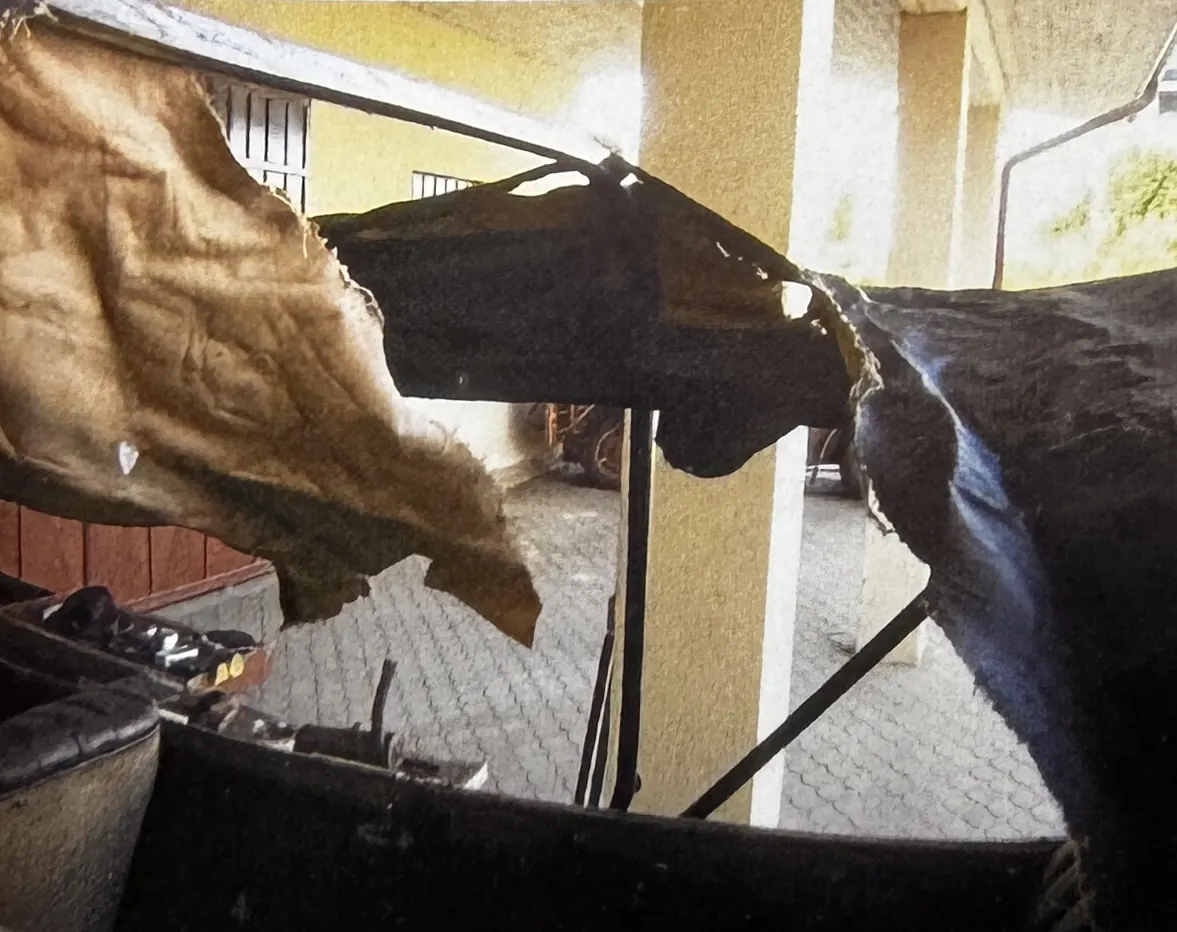

the original hood, torn

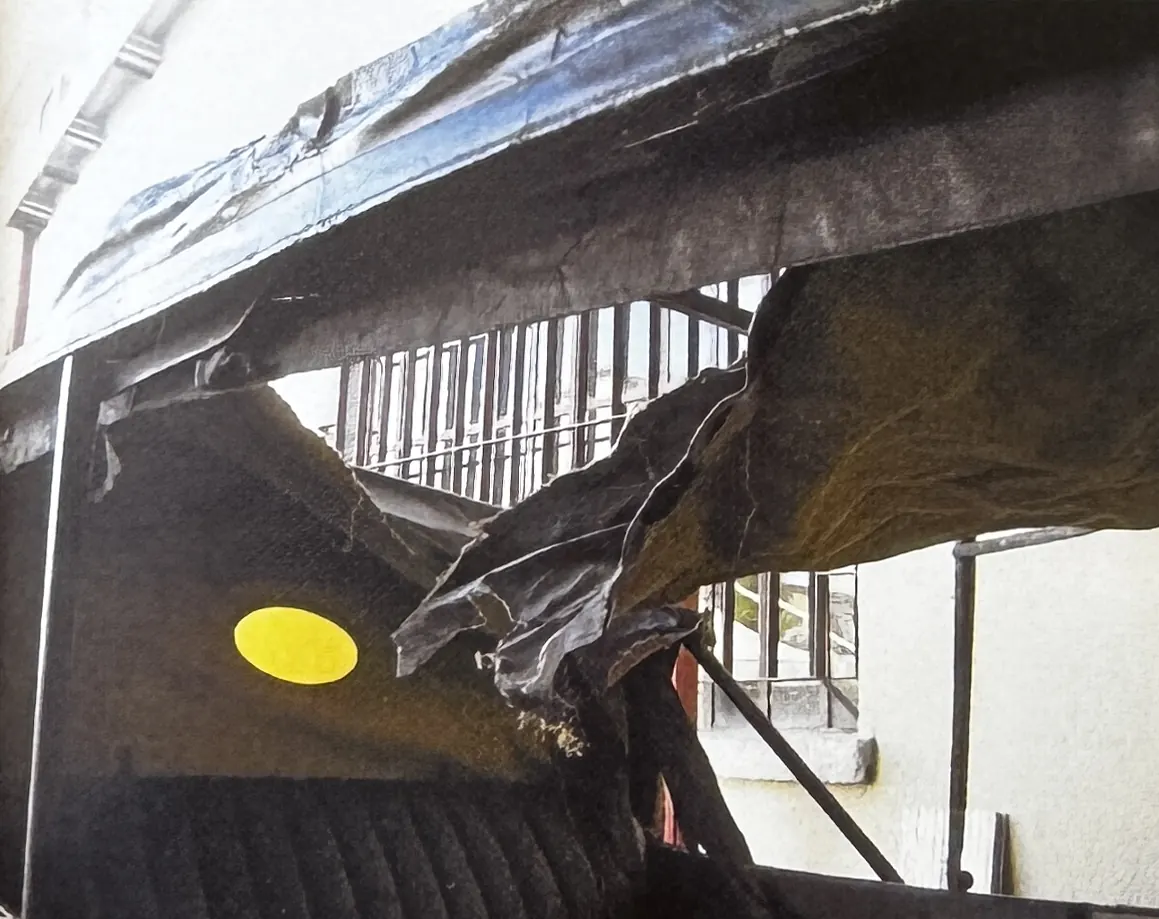

the back of the hood, with the cloth ripped

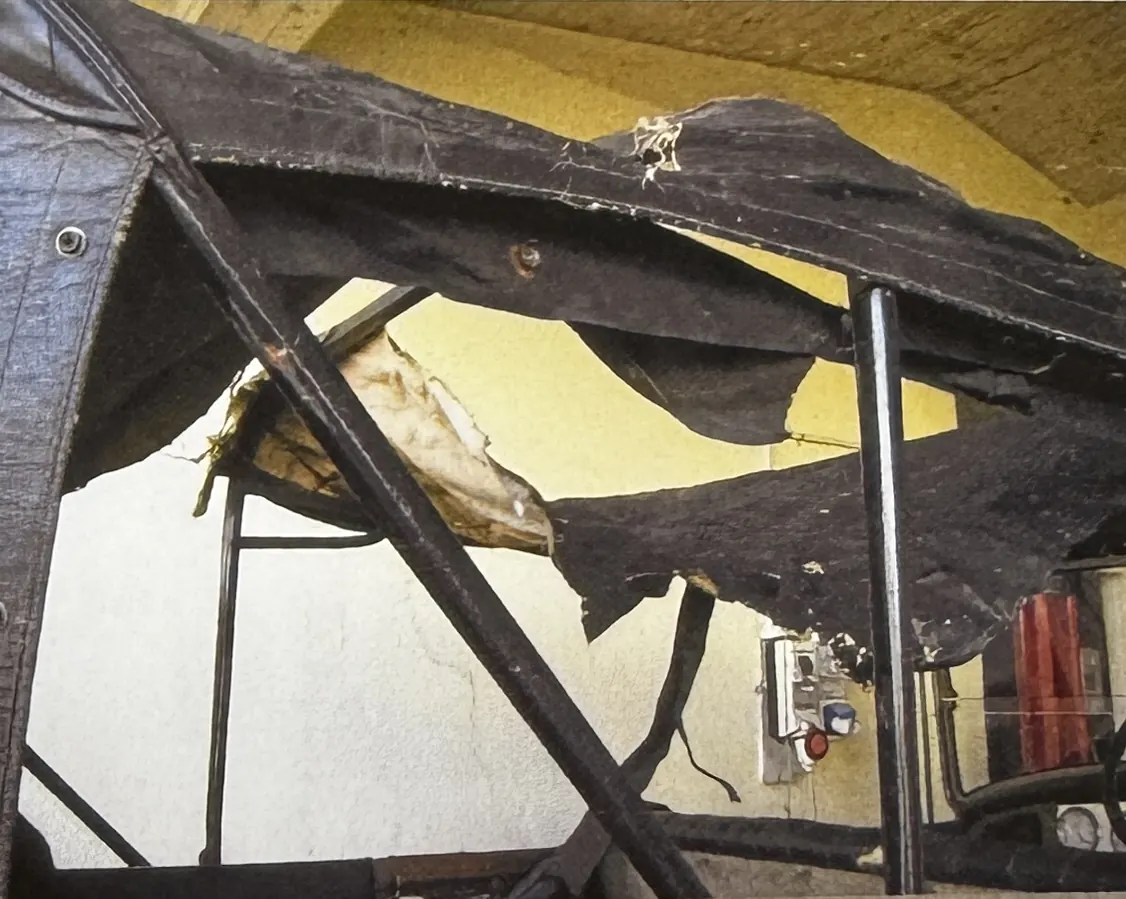

the tears over the iron hoops - Step 2 of 5
The engine
The four-cylinder is opened up: head off, valves and springs checked, carburettor cleaned. Then everything goes back together with its original parts.

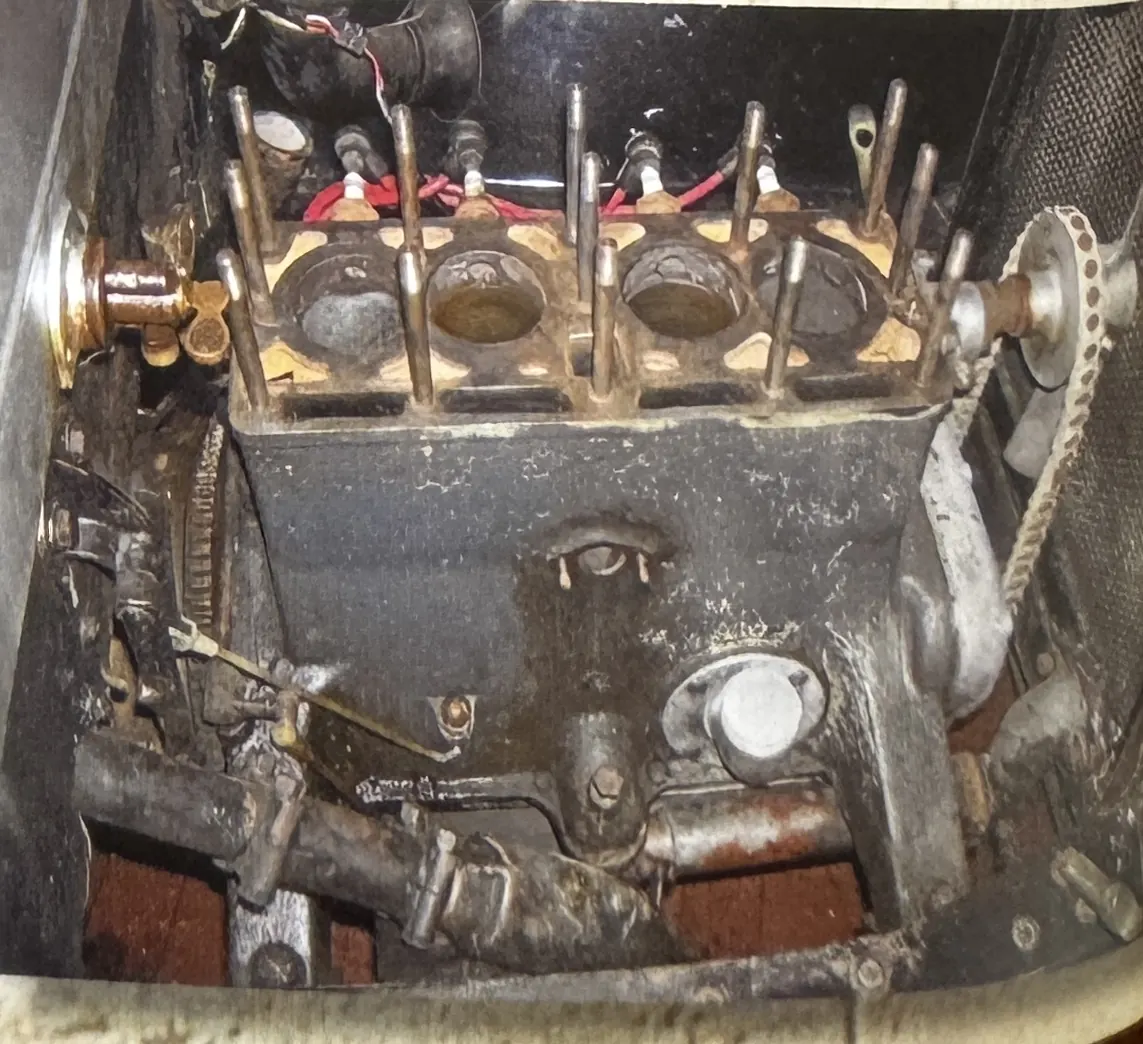

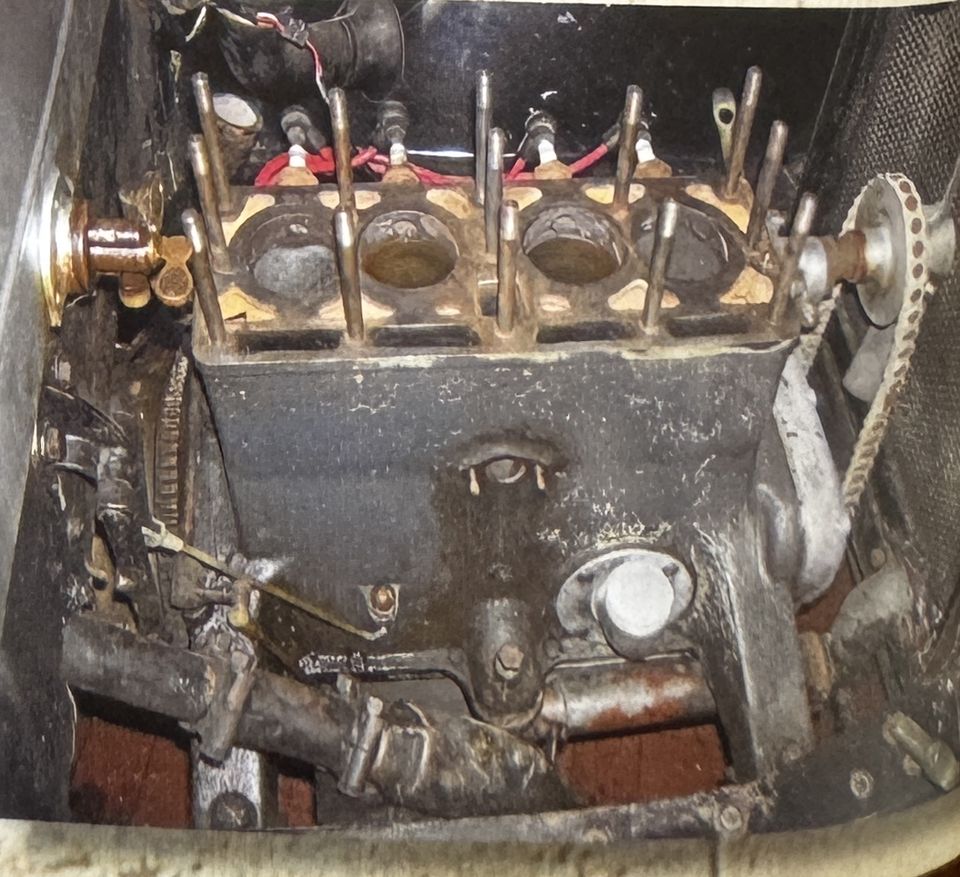

the four-cylinder with the head off

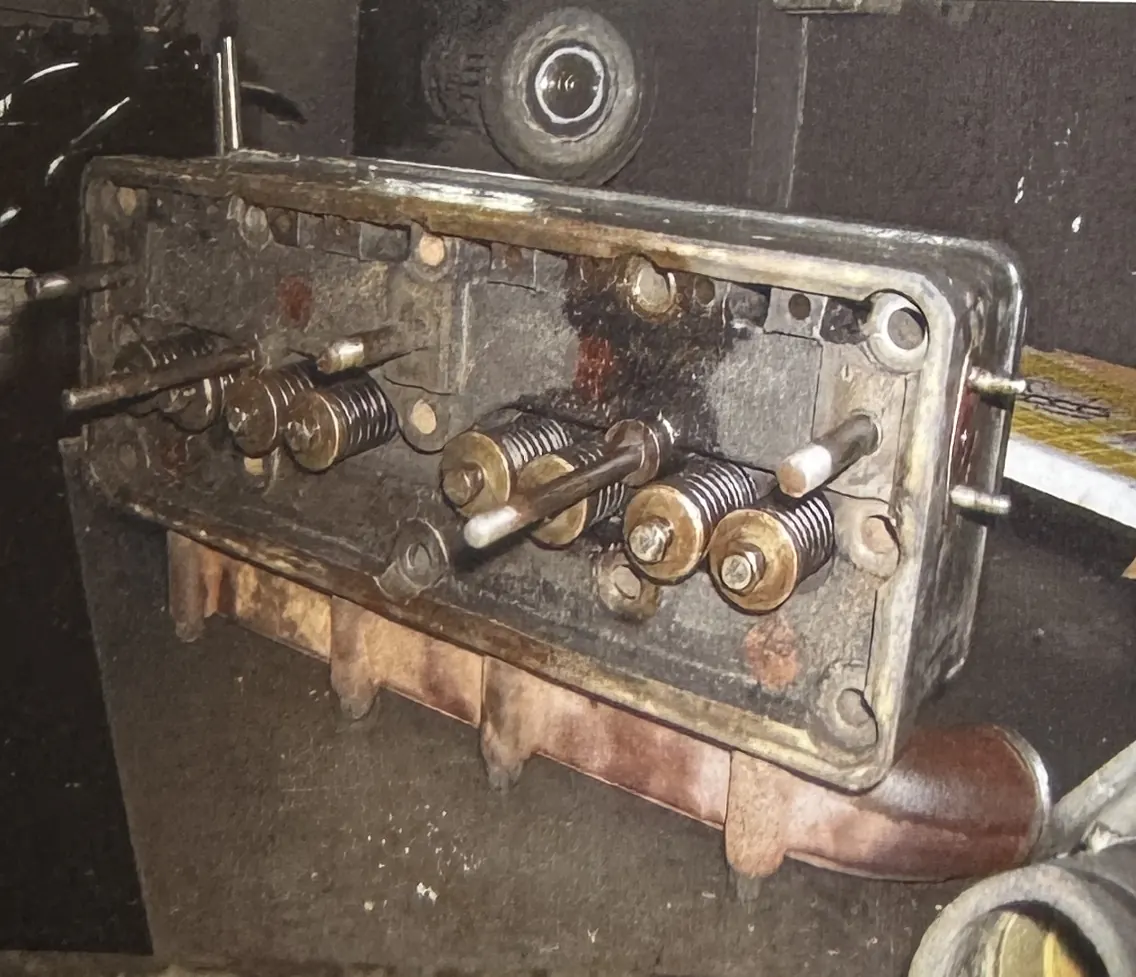

the head with valves and springs

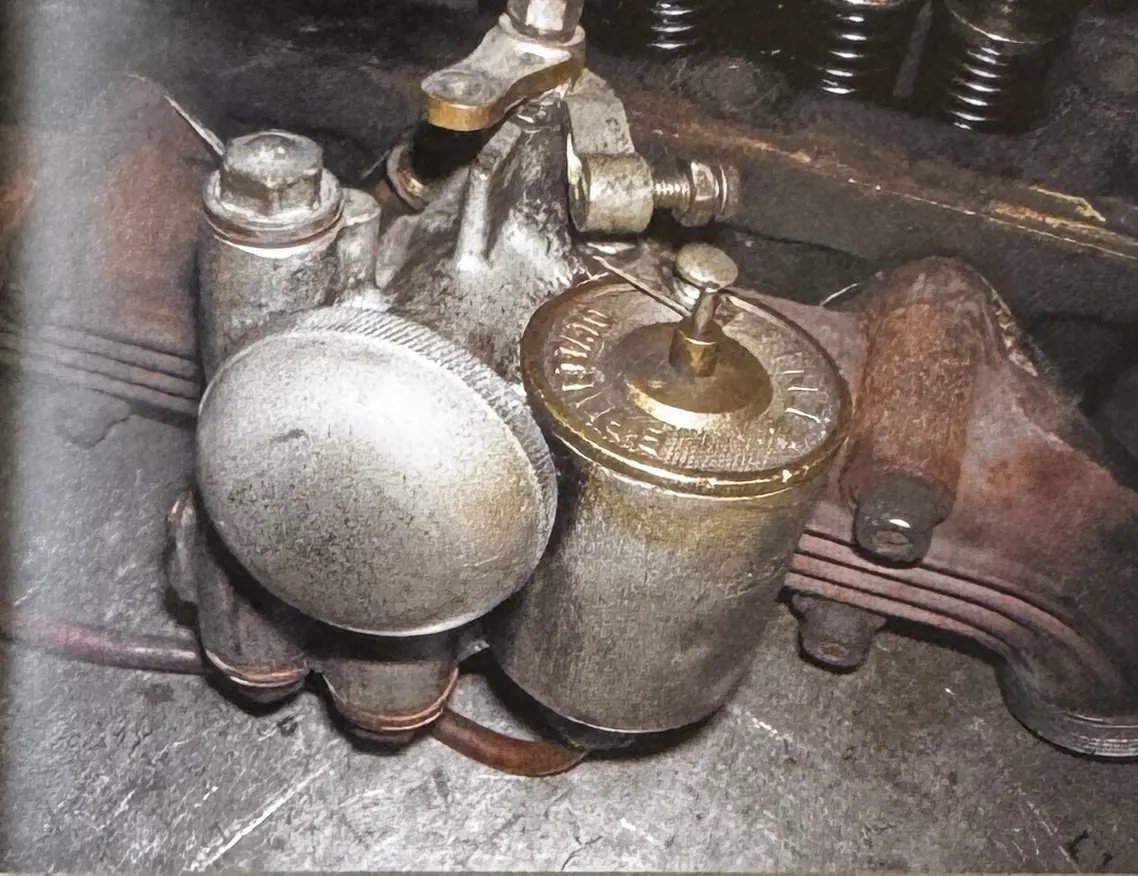

the carburettor before cleaning

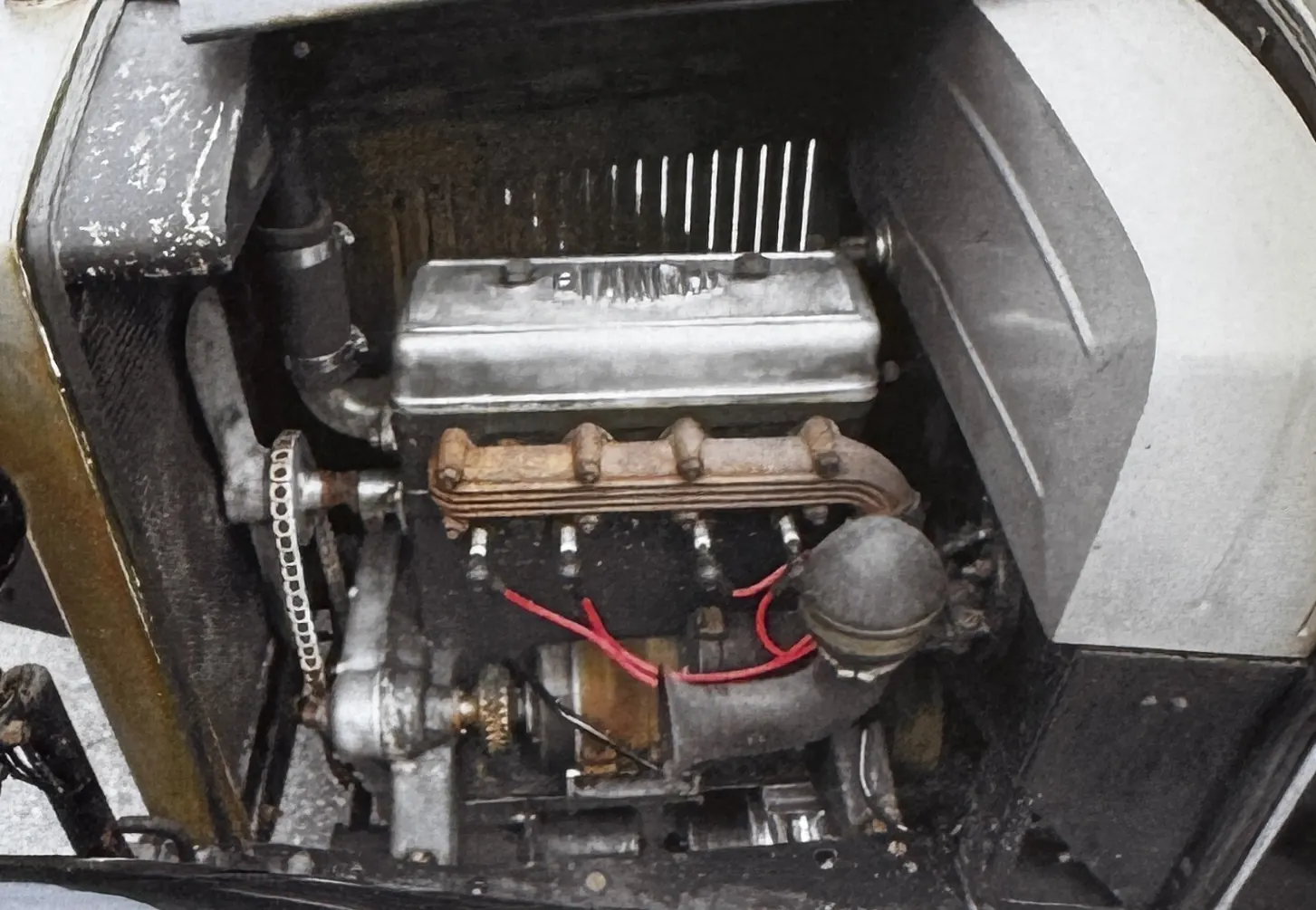

the engine back in its bay - Step 3 of 5
Underneath
With the car on the lift, floor, propshaft and rear axle are checked: cleaned and preserved, without repainting what is sound.

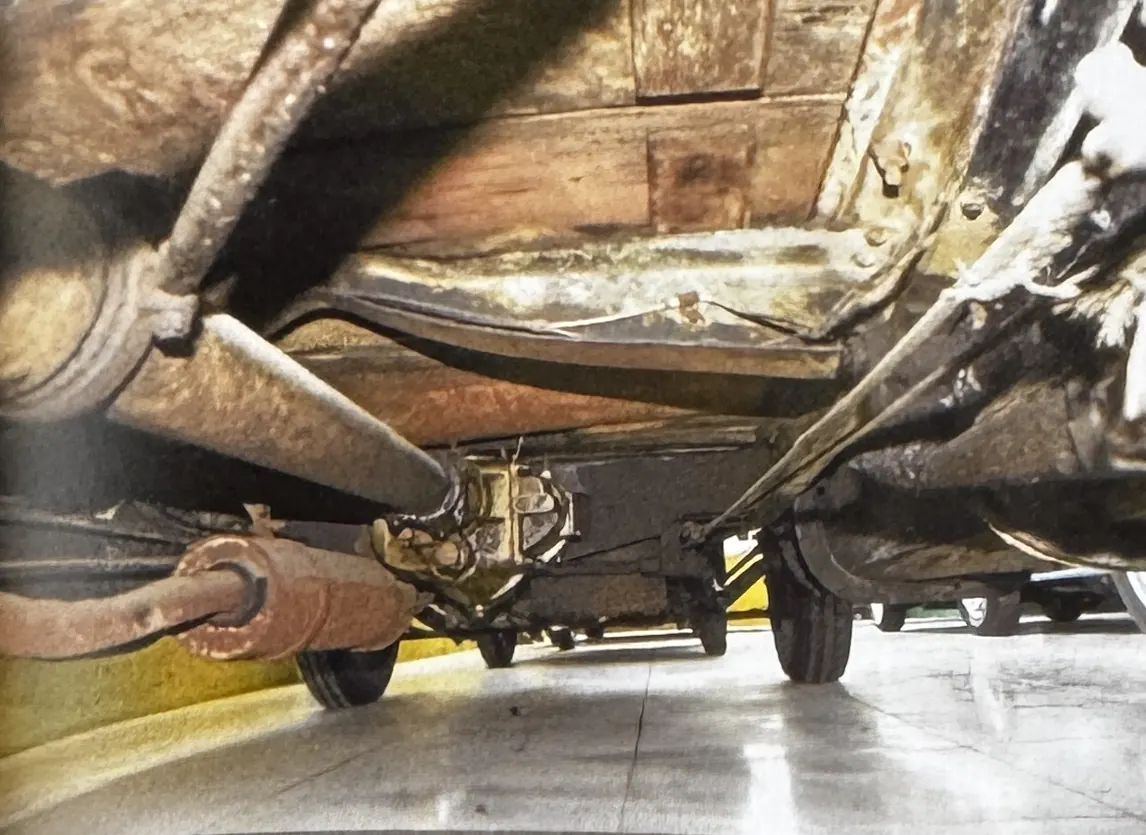

the underside seen from the lift

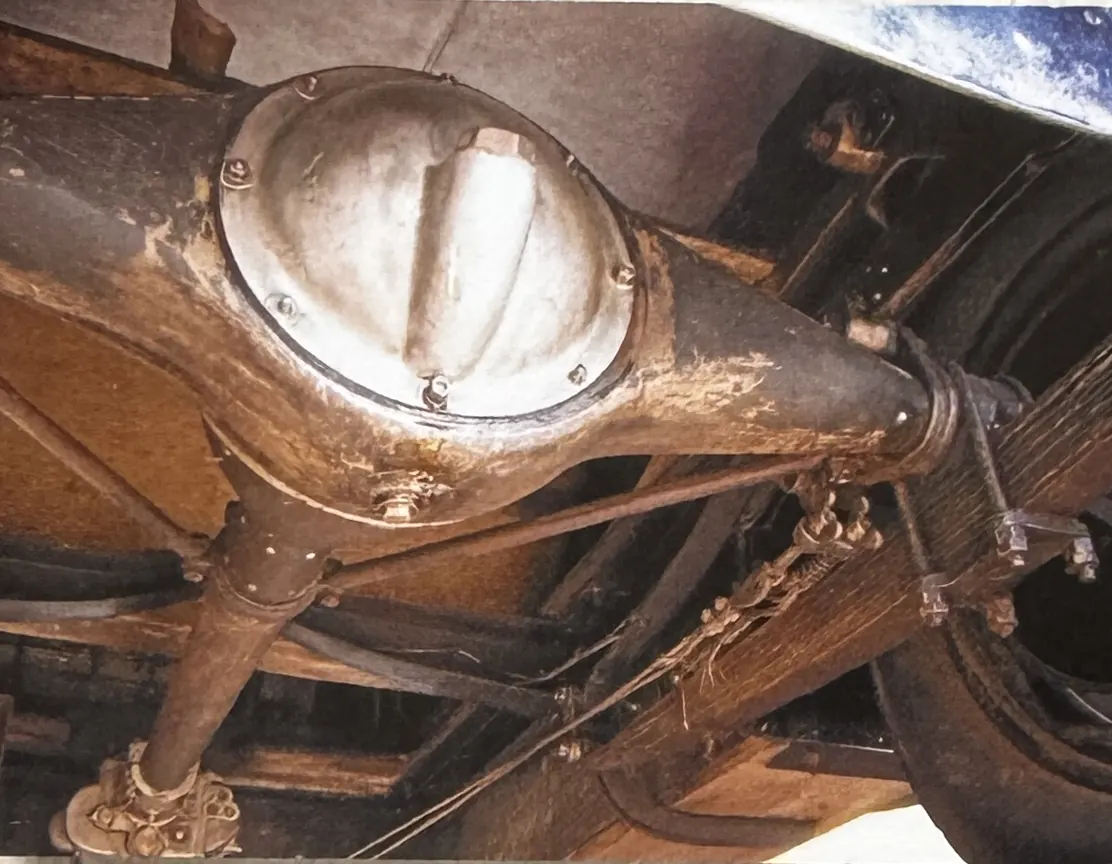

the rear axle and its casing

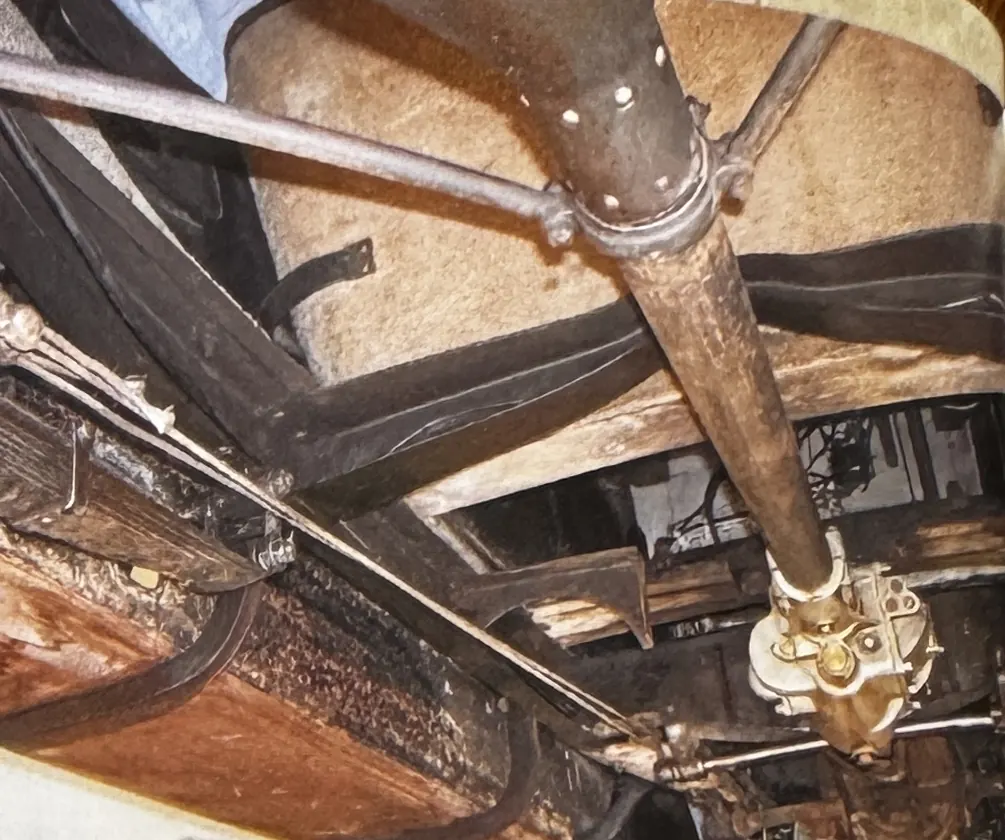

the propshaft running to the rear axle - Step 4 of 5
The old hood, saved
The hood is laid out on the floor and studied piece by piece. Damaged parts are replaced with strips taken from an old hood, joined and stitched to the sound sections.

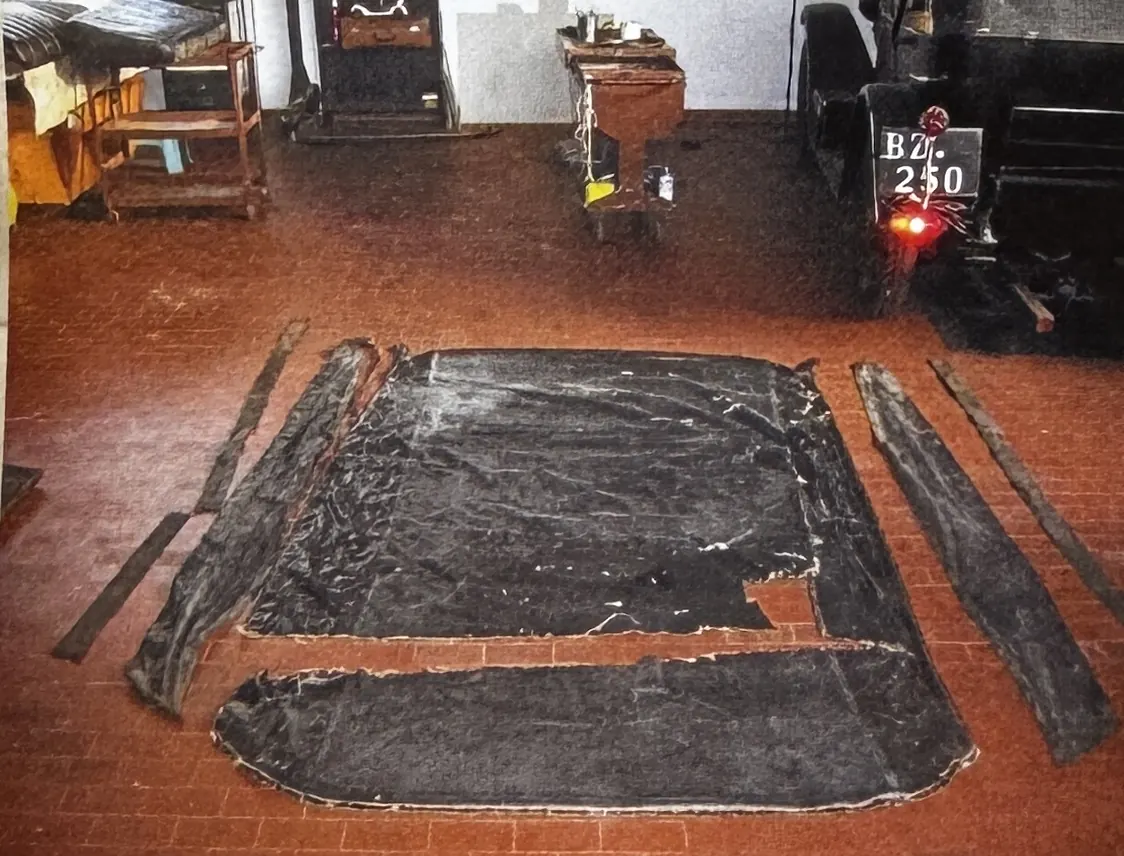

the hood off the car, laid out on the floor

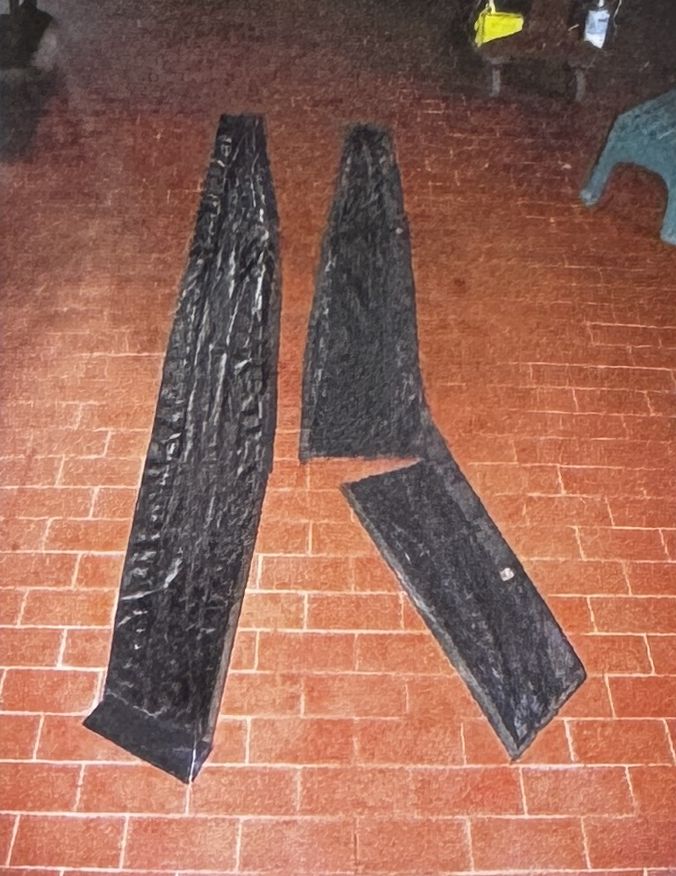

strips taken from an old hood

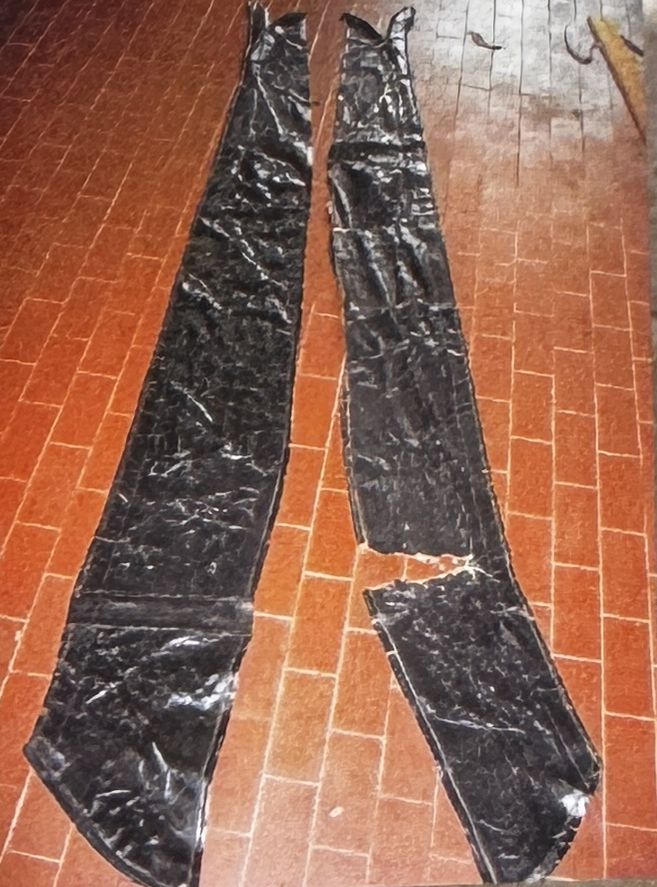

the pieces joined, ready for stitching

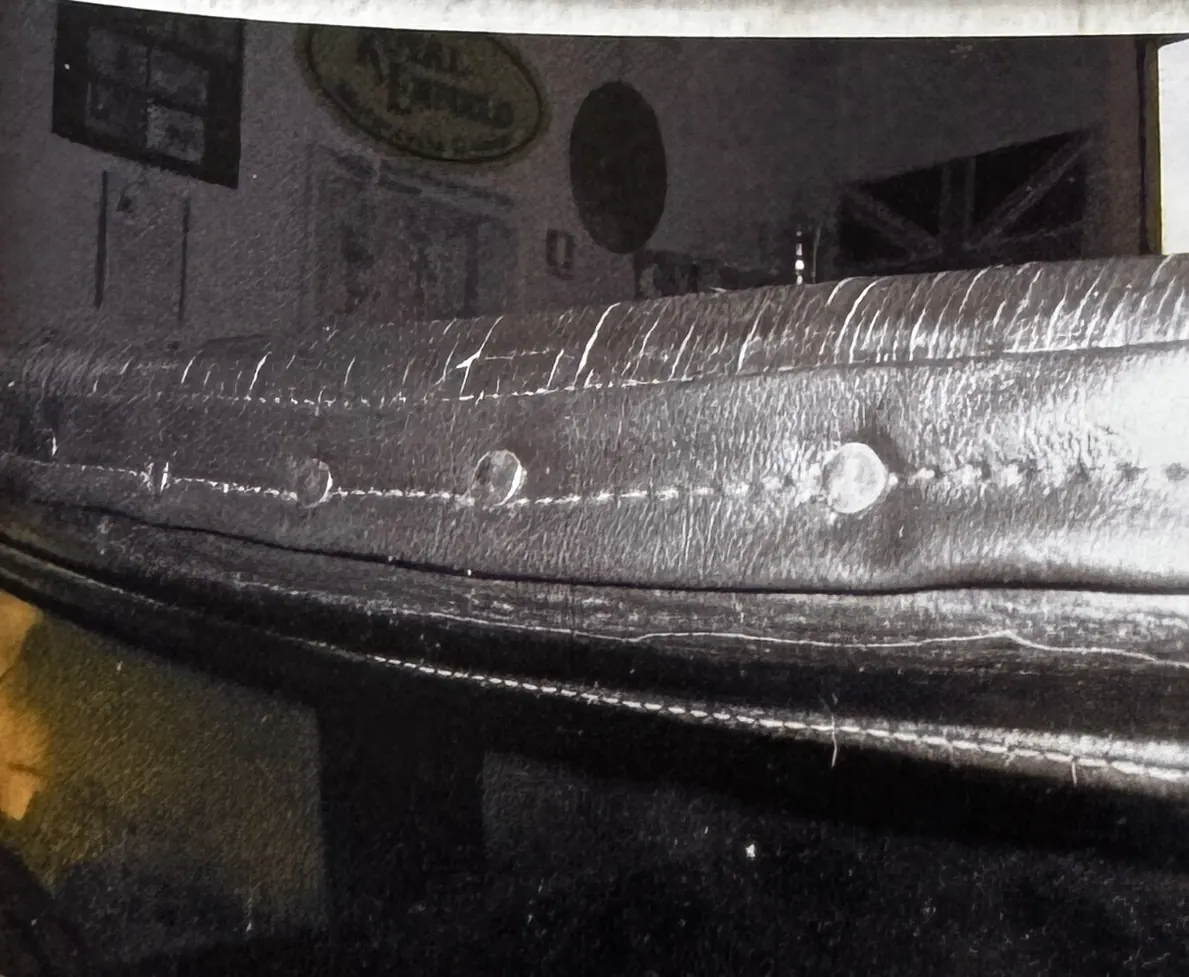

the stitching along the edge - Step 5 of 5
The hood back in place
The repaired hood goes back on its frame, with the side screens and windows. From outside you cannot see the joins: it is the same age and colour as the rest.

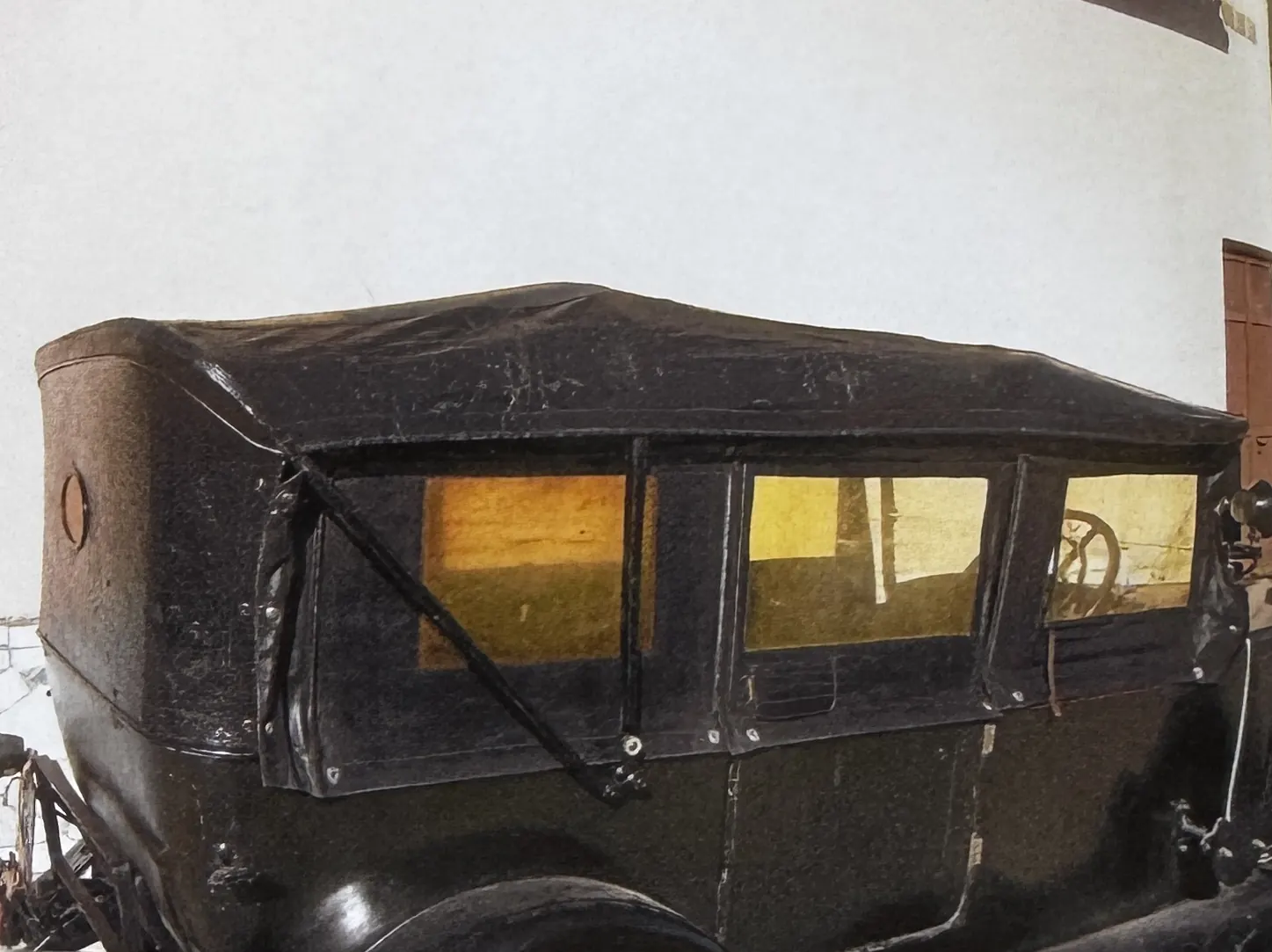

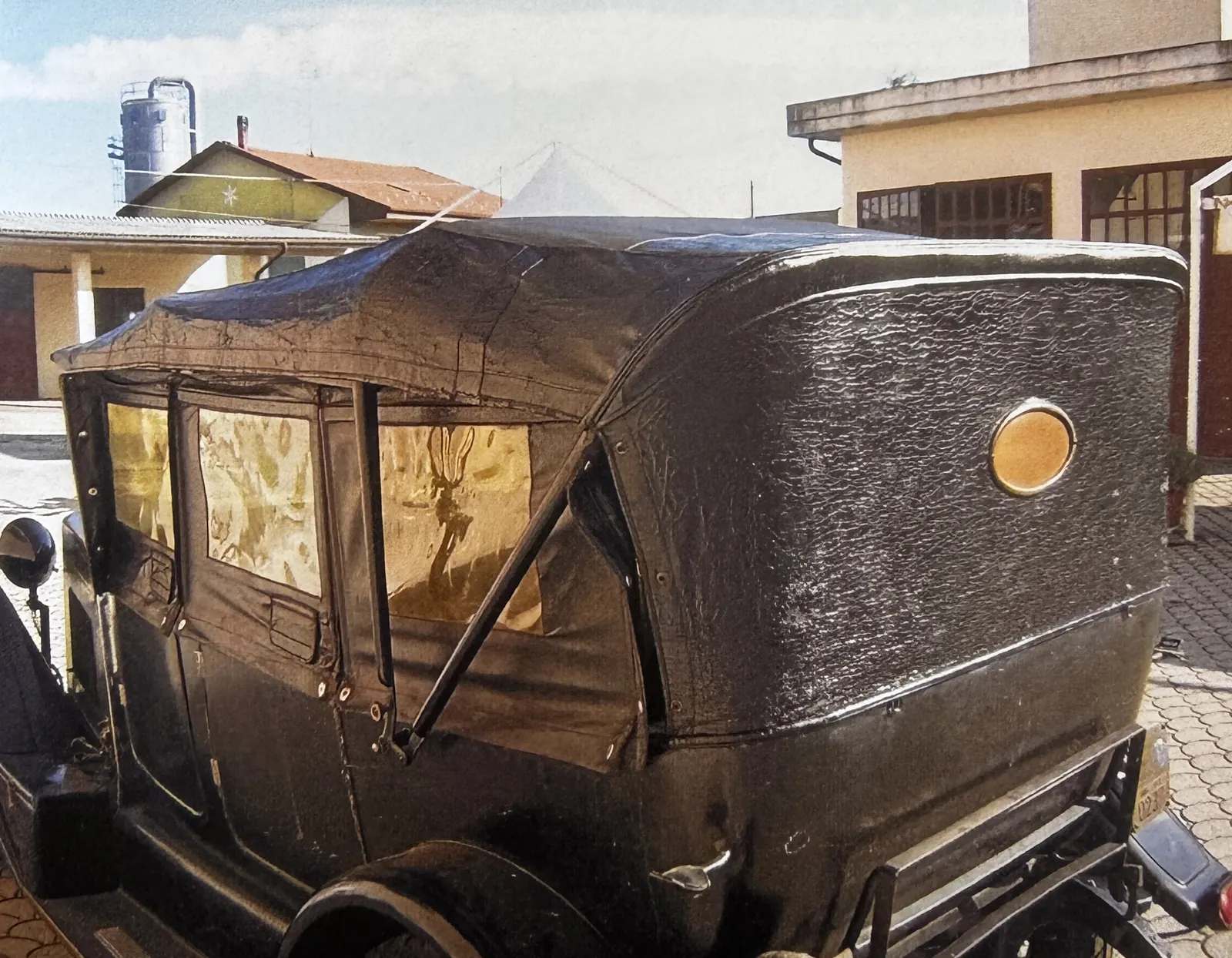

the repaired hood, with its side screens

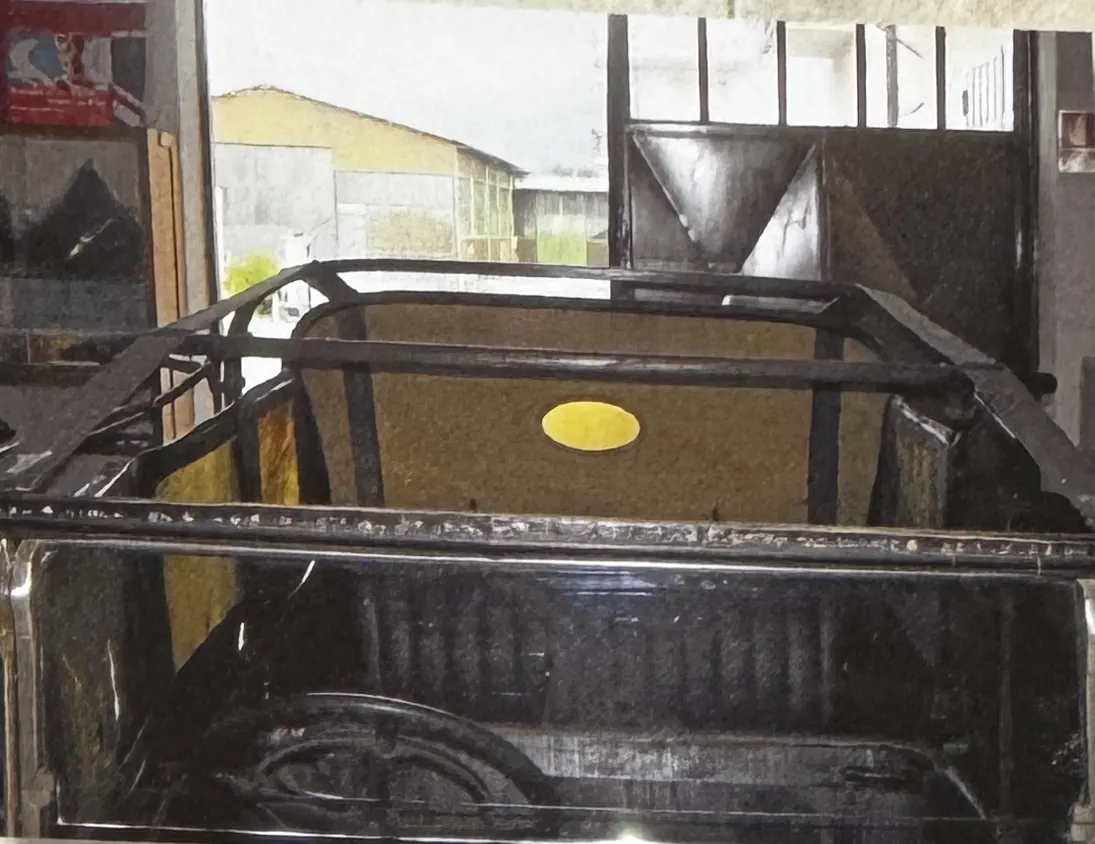

the hood frame with the rear panel

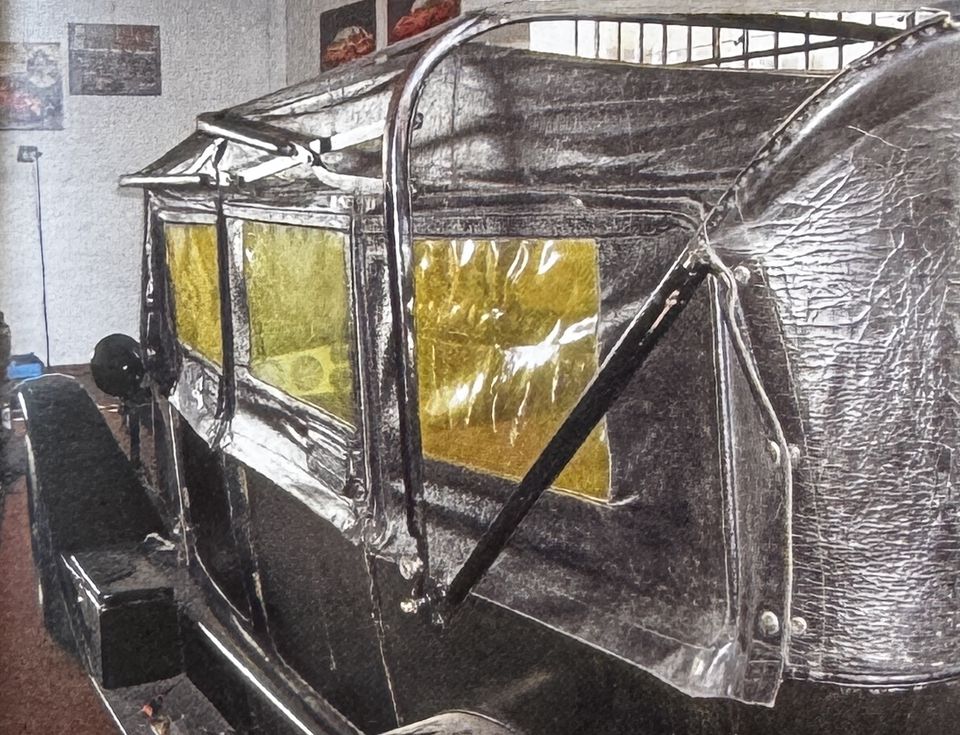

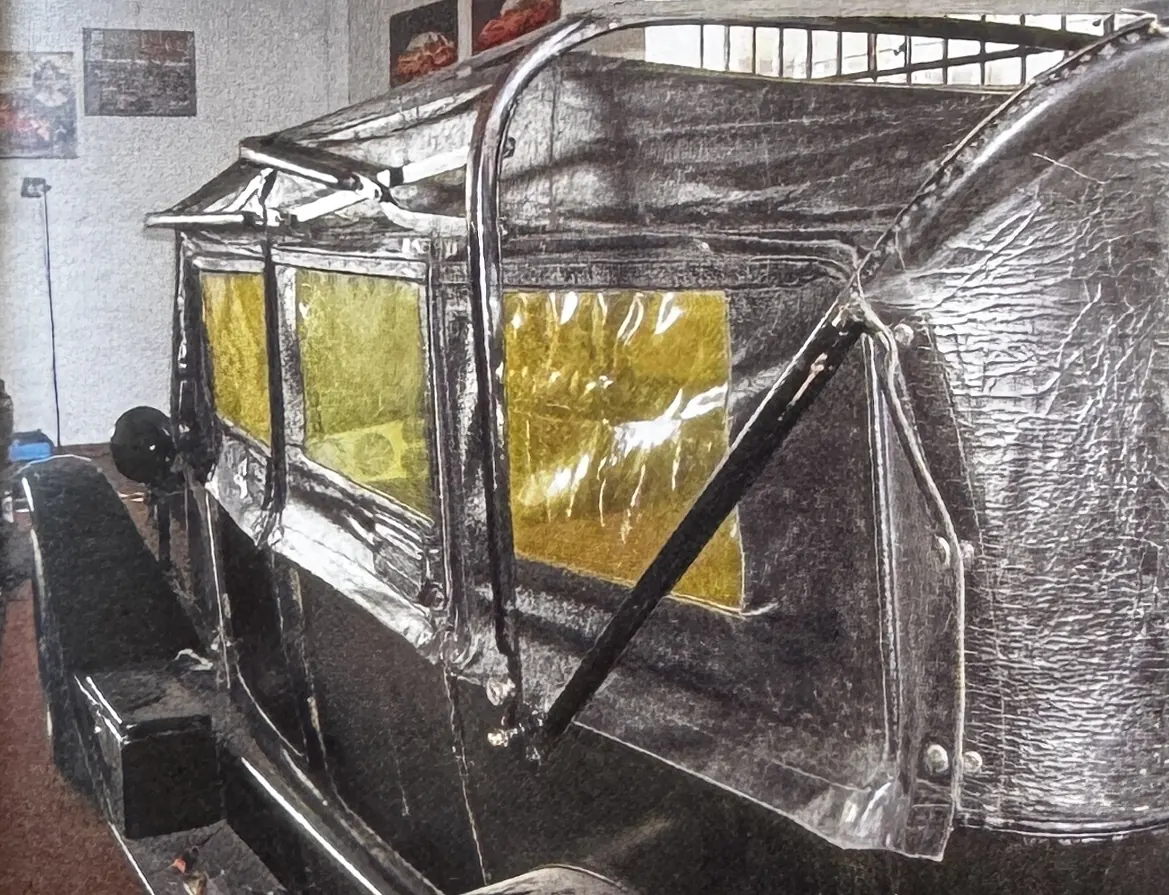

fitting the panels with the windows

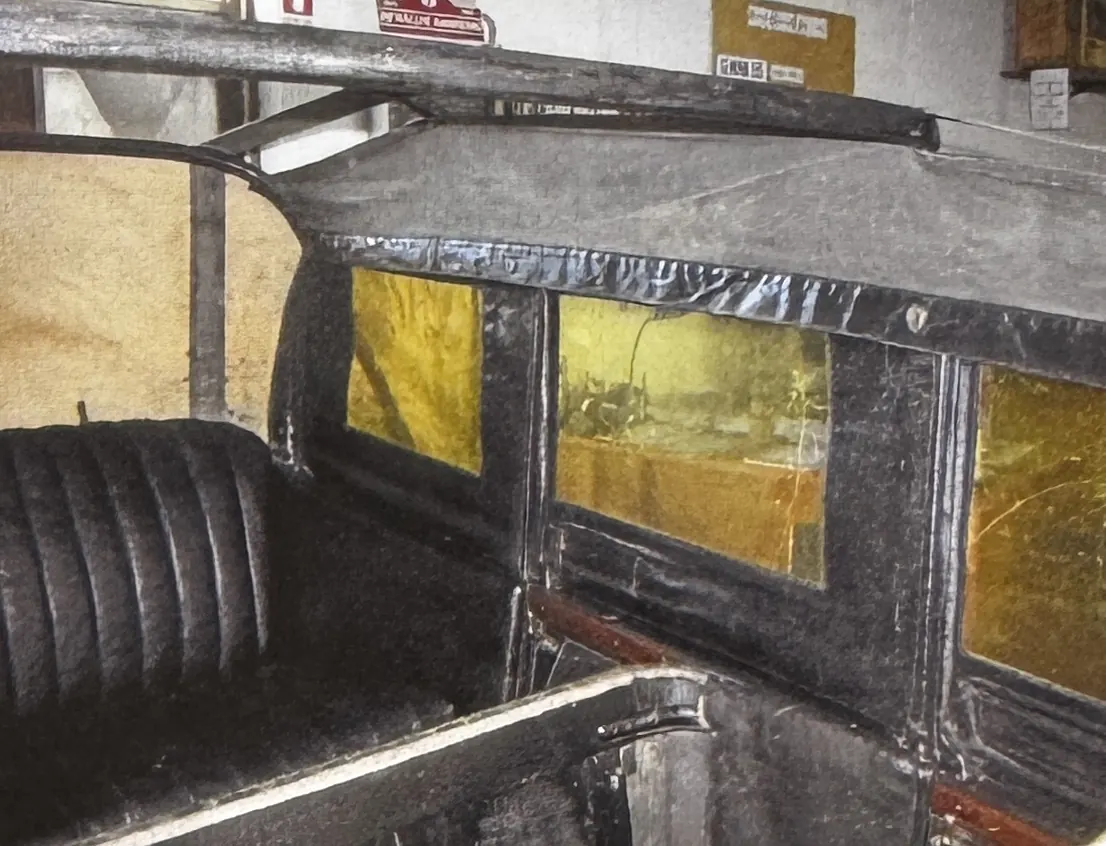

the cabin seen from under the hood

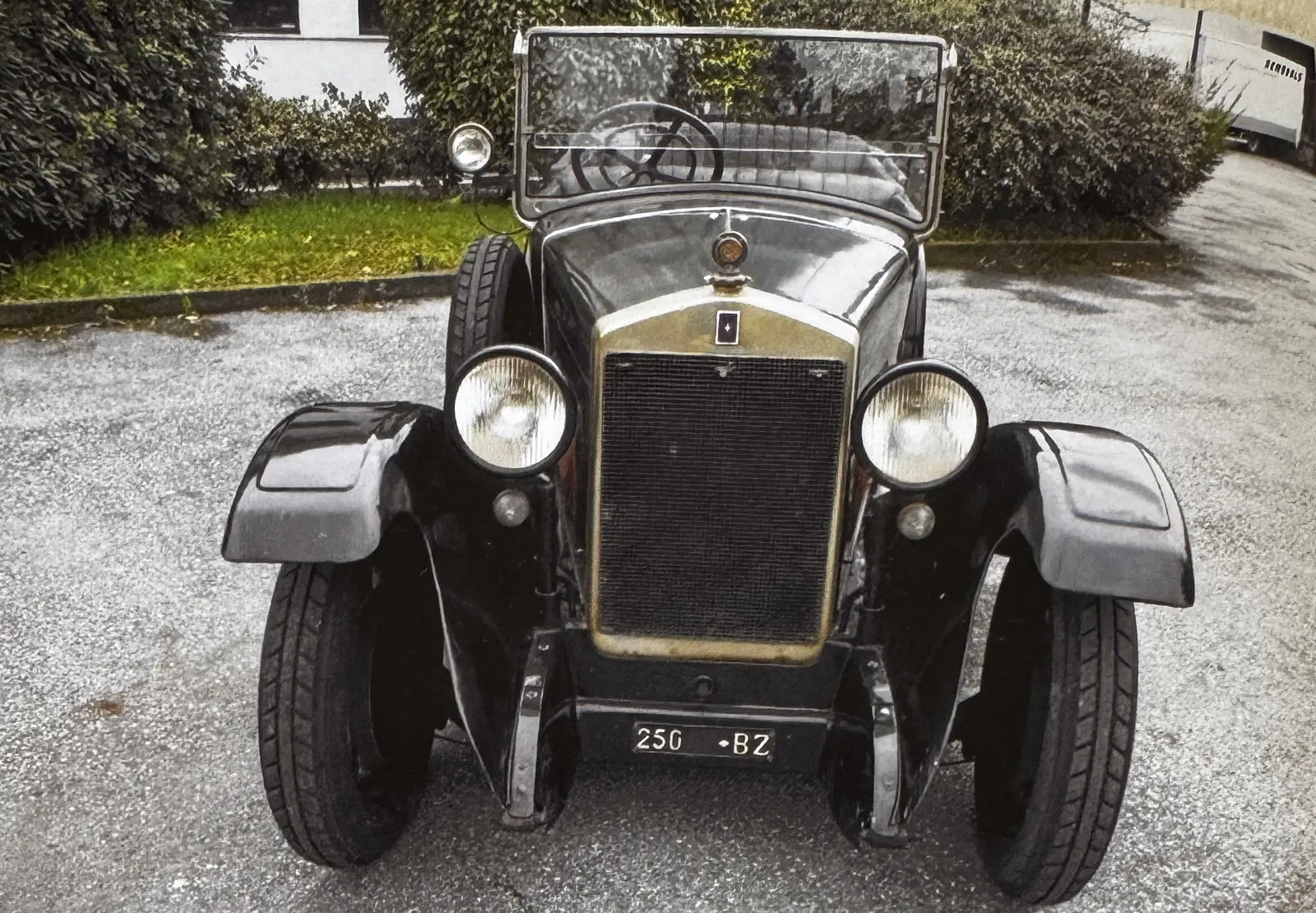

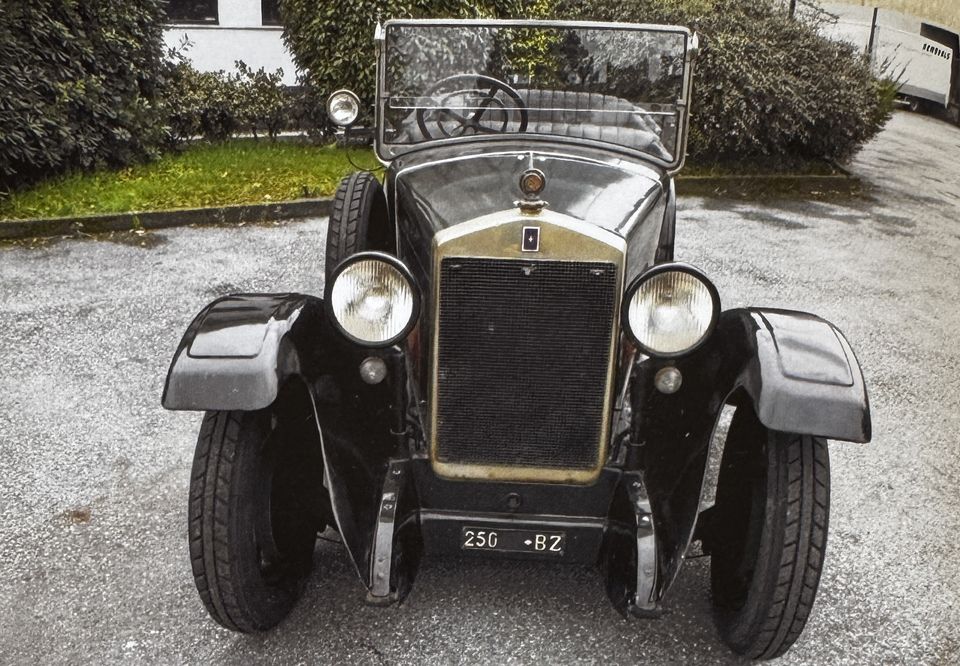

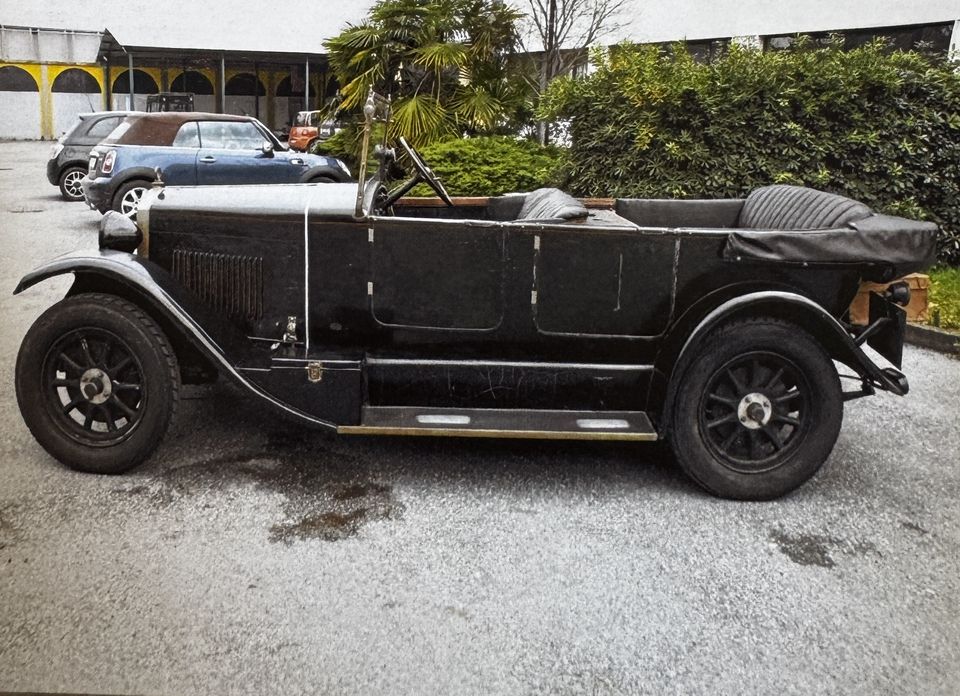

As it is today
